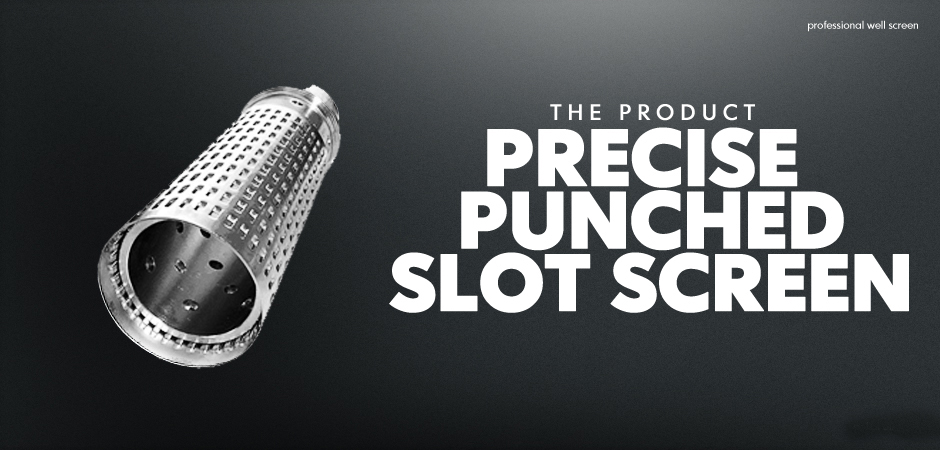

precise punched slot screen

Screen

API Pipe

ID(mm)

OD(mm)

SLOT(μm)

Normal size(inch)

OD(mm)

63

73

300~1000

2-3/8”

60.3

74

85

300~1000

2-7/8”

73

92

102

300~1000

3-1/2”

88.9

103

127

300~1000

4”

101.6

116

130

300~1000

4-1/2”

114.3

129

142

300~1000

5”

127

142

154

300~1000

5-1/2”

139.7

172

184

300~1000

6-5/8”

168.3

183

195

300~1000

7”

177.8

220

232

300~1000

8-5/8”

219.1

246

260

300~1000

9-5/8”

244.48

276

290

300~1000

10-3/4”

273.05

342

355

300~1000

13-3/8”

339.70

Length of screen 5m * 1

Length of pipe(m)

5.8

Length of screen 4.5m * 2



9.3~9.6

Length of screen 5m * 2



11~12



Note: The length of base pipe and the diameter and slot of screen can be changed as per customer’s requirement
